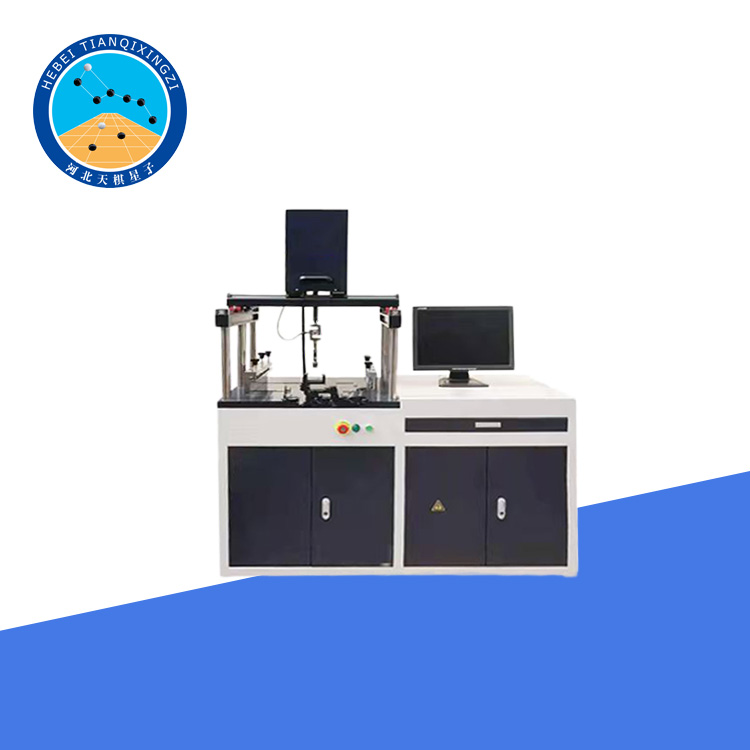

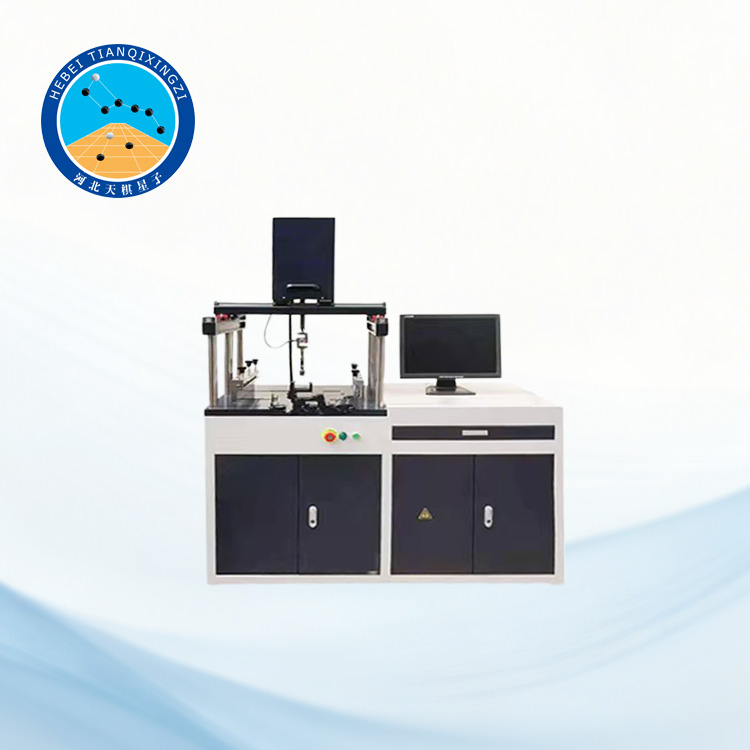

The Computerized High Accuracy Pull-Off Adhesion Tester is designed for testing the tensile adhesion strength of building materials, including mortar, coatings, tile adhesives, waterproofing mortars, and exterior wall putties. Featuring a servo-controlled system, uniform loading, and precise digital measurement, it delivers reliable, high-accuracy results for both laboratory and on-site applications.

Multifunction Pull-Off Adhesion Tester

Model:TDLB-10

I.Product Introduction

This testing instrument is suitable for tensile bond strength testing of cement-based penetrating crystallizing waterproof mortar,ceramic wall and floor tile adhesives,dry-mixed mortar,thermal insulation materials,multi-layer building coatings,and exterior wall putty.The testing machine has an exquisite appearance and delicate workmanship.It adopts a servo control system to achieve uniform loading,high efficiency,and good stability.

This equipment is computer-controlled with a user-friendly interface.It features internal travel limit switches and overload protection for both positive and negative force values.It boasts adjustable testing speed,high load measurement accuracy,and ease of operation.It is suitable for production inspection,development,and research in factories,construction engineering quality testing stations,construction companies,product quality inspection institutes,research institutions,and road and bridge construction sites.

II.Reference Standards

ISO 4624:2023,ASTM D4541-22,ASTM D7234-22,EN 1542,EN 1015-12,EN 1607,EN 15824,ETAG 004/EAD 040083-00-0404

III.Technical Parameters

Maximum Pull-out Force:10KN(5KN optional)

Effective Detection Range:1%-100%of maximum test force

Load Resolution:0.5N or 0.1N optional

Load measurement accuracy:better than±1%of the indicated value

Pull-out speed:0.05mm-200mm/min

Loading speed:5N/s-1000N/s

Tensile strength range:100mm

Specimen size:400mm x 400mm or 400mm x 200mm specimens

Maximum thickness:60mm

Drive method:Servo motor drive

Power supply:Single-phase AC 220V/50Hz,motor power 400W

Dimensions:(L*W*H)140*74*179cm

Weight:310 kg

IV.Instrument Components

1.Testing Machine Body

2.Main Unit

3.Force Sensor

4.Pull-out connector

5.Movable clamp

6.Base plate fixing strip

7.Computer control system
