This equipment is a multi-functional experimental/production device, mainly used for grinding, dispersing, homogenizing, and mixing liquids or slurries. Through high-speed stirring and sand milling, it ensures that solid particles are uniformly dispersed in the liquid, improving the stability and consistency of the slurry. It is widely used in the preparation and experimental research of coatings, inks, pigments, cosmetics, and chemical materials.

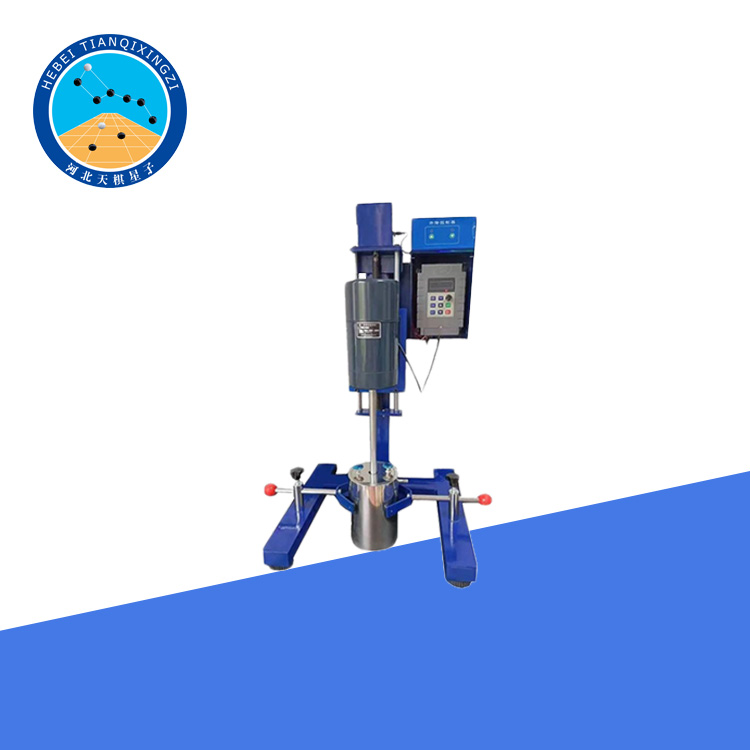

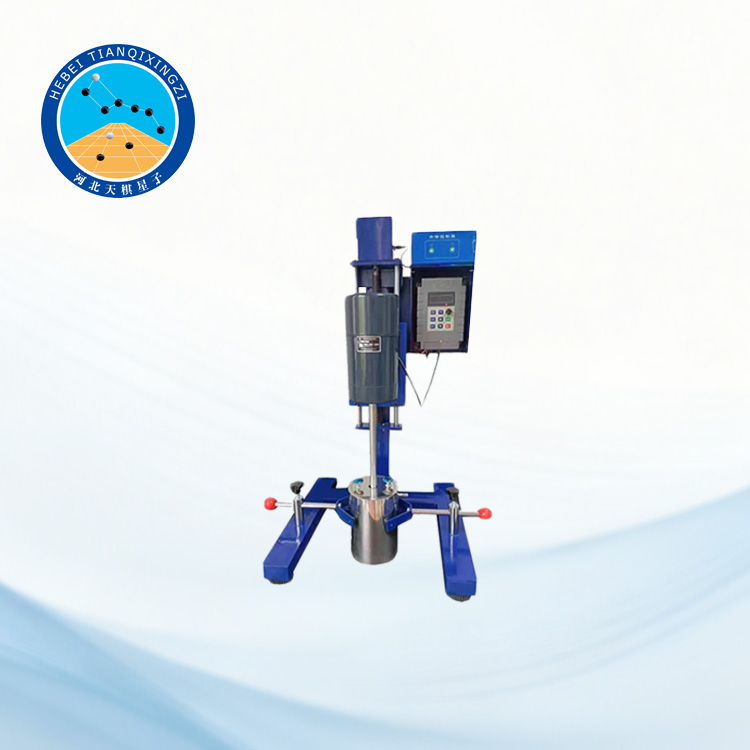

Sand grinding mixing and dispersing multi-purpose machine

Model:TDJS-400

I.Product Introduction

The multi-purpose sand mill,dispersion,and mixing machine is a testing instrument.It is a new product designed using advanced domestic and international technologies.This product integrates the functions of mixing,sand milling,and dispersion into one unit.It uses an electronic constant force high-speed circuit,directly displays the shaft speed digitally,and is equipped with a dispersion impeller and a sand milling disc.

It can adapt to different laboratory test needs and can directly calculate the relationship between the linear velocity of the stirring,dispersing,and grinding blades and the material viscosity and chemical reaction rate based on the displayed shaft speed,providing accurate data for large-scale production.

II.Structure

1.This machine adopts a dual-axis constant force lifting system for convenient lifting.

2.It uses a series-wound commutator motor,and implements step-by-step speed regulation of the motor through an intelligent motor speed controller.It applies digital PID technology,achieving high control precision,and the shaft speed is directly displayed digitally.

3.The dispersing impeller and grinding disc are directly connected to the shaft with screws.

4.The barrel is fixed by left and right clamps.The barrel adopts a jacketed structure,allowing cooling water to pass through,and is made of stainless steel.

III.Structure of a Multi-Purpose Machine for Grinding and Dispersing

1.This machine adopts a dual-axis constant force lifting system for easy lifting.

2.It uses a series-excitation commutator motor,and the motor speed is gradually adjusted through an intelligent motor speed controller.Digital PID technology is applied,resulting in high control precision,and the shaft speed is digitally displayed.

3.The dispersing impeller and sanding impeller are directly connected to the shaft with screws.

4.The barrel is secured by left and right brackets.The barrel body features a jacketed structure for cooling water treatment and is constructed of stainless steel.

IV.Technical Parameters

Motor Model:U400/80-220 400W 220V 100-8000r/min

Adjustment Range:Stepless constant force speed regulation 100-8000r/min

Agitator/Dispersing Impeller Diameter:¢60mm;¢50mm

Grinding disc diameter:¢60mm;¢45mm

Lifting stroke:250mm

External dimensions:400×450×800mm

Technical parameters of the multi-purpose sand mill/dispersion mixer:

Motor model:U400/80-220 400W 220V 100-8000r/min

Adjustment range:Stepless constant force,speed 100-8000r/min

Agitator impeller diameter:¢60mm;¢50 mm

Grinding wheel diameter:¢60mm;¢45 mm

Lifting stroke:250mm

Dimensions:400×450×800mm
