The Air Compressor for Concrete Cube Mold Demolding is designed to provide reliable compressed air for the efficient demolding of concrete cube specimens. It is suitable for use in laboratories and on construction sites, helping to remove concrete samples from molds without damage. In addition to its primary demolding function, it can also support light-duty pneumatic tools and basic inflation tasks.

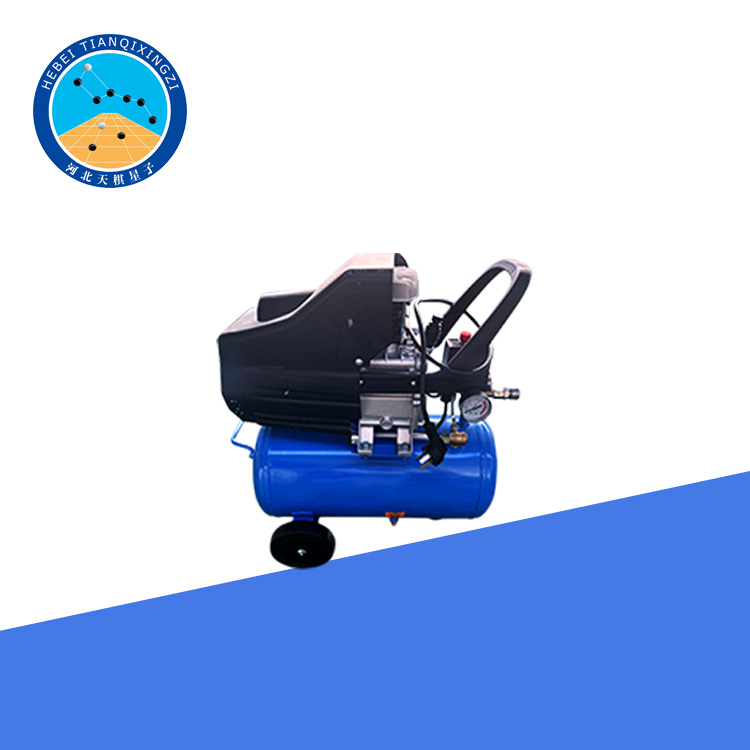

Air Compressor

Model:TD-ZBM-0.1/8

I.Product Introduction

This air compressor,used as a concrete test block demolding air pump,is primarily applicable to the demolding of concrete test blocks(such as compressive strength and impermeability test blocks)in laboratories and construction sites.It can also be adapted to lightweight pneumatic scenarios such as small pneumatic tool drive and simple inflation,but its core purpose is to meet the specific needs of test block demolding.

II.Technical Parameters

1.Power:1.5KW

2.Volumetric Flow Rate:0.1m³/min

3.Air tank capacity:18L

4.Voltage:220VAC

5.Working pressure:0.8 MPa

6.Test pressure:1.5 MPa

7.Frequency:50Hz

8.Design Pressure:1.0MPa

9.Design Temperature:80°C

10.Current:7A

11.Weight:17kg

12.Dimensions:540x265x590 mm

13.Insulation class:B

14.Rated speed:2850 r/min
