The fully automatic softening point tester is used to determine the softening point of electrode paste, bitumen, polymer-modified bitumen, and other viscous materials. It evaluates the material’s thermal softening and flow properties, providing essential data for quality control, research, and construction applications.

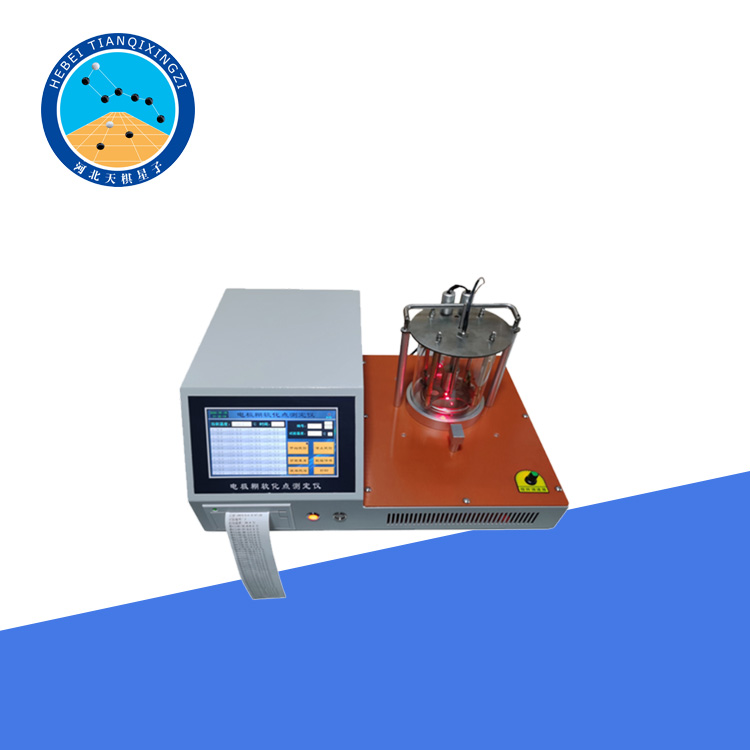

Electrode Paste Softening Point Tester

Model:TDRD-7

I.Product Introduction

The new fully automatic softening point tester determines the softening point of viscous petroleum asphalt based on the ring and ball method.This instrument is suitable for determining the softening point of electrode paste,rubber,road petroleum asphalt,polymer-modified asphalt,liquid petroleum asphalt,coal tar distillation residues,or emulsified asphalt evaporation residues.It is the preferred instrument for highway and bridge construction and research institutions.

II.Main Features

1.This instrument features a 7-inch true-color large screen display and a user-friendly touchscreen operation design;

2.This instrument adopts microcomputer control,automatic stirring,and linear heating.The heating rate meets the requirements specified in the standard,and the test results are automatically detected.

3.The beaker is made of high-temperature resistant glass,and the specifications and dimensions of the steel ball positioning ring,steel balls,etc.,meet the requirements specified in the standards;

4.The instrument displays temperature and time in real time,and dynamically displays and records the temperature-time curve during the test;

5.The instrument has a built-in printer,allowing data to be printed at any time;

6.It has an Ethernet interface,which can easily enable data networking;

7.The instrument has a data interface,which can read data.

III.Technical Parameters

Voltage/Frequency:220V±10%,50Hz;

Operating Environment:Ambient temperature below 35℃;Areas without direct exposure to strong light

Measuring Range:5-80℃(Water medium);80-180℃(Glycerol medium)

Temperature Accuracy:Minimum graduation 0.1℃;

Time accuracy:minimum division 1 second;

Steel ball:Φ9.53mm,G=3.5±0.05g;

Beaker:glassware with a capacity of not less than 0.8L,a depth of not less than 120mm,and a diameter of not less than 86mm;

Stirrer:Stirring speed is continuously adjustable;

Heating rate:Automatically adjusts to 5.0±0.5℃/min after three minutes of operation;

Heating power:800W.
