This instrument is measuring the consistency of lubricating greases by the penetration of a cone of specified dimensions, mass, and finish.

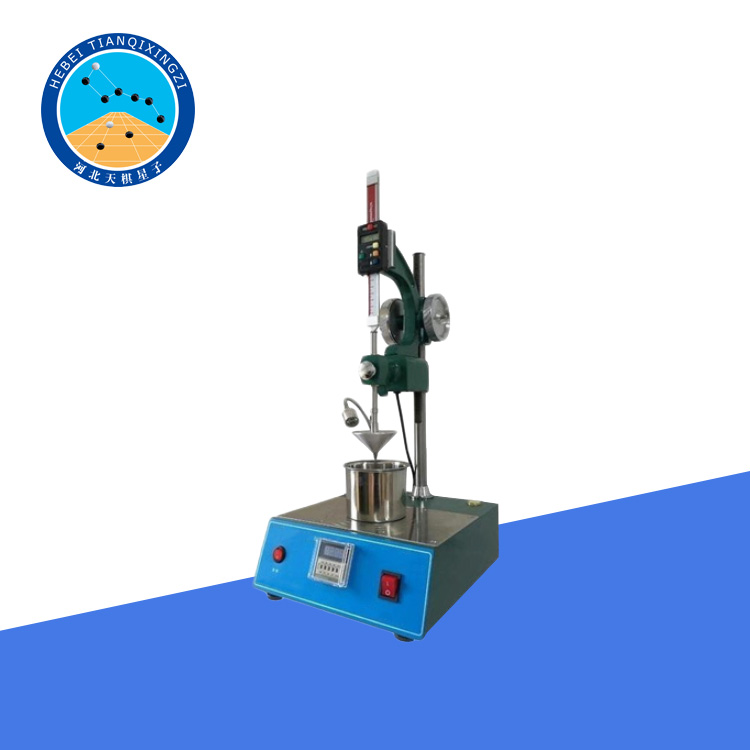

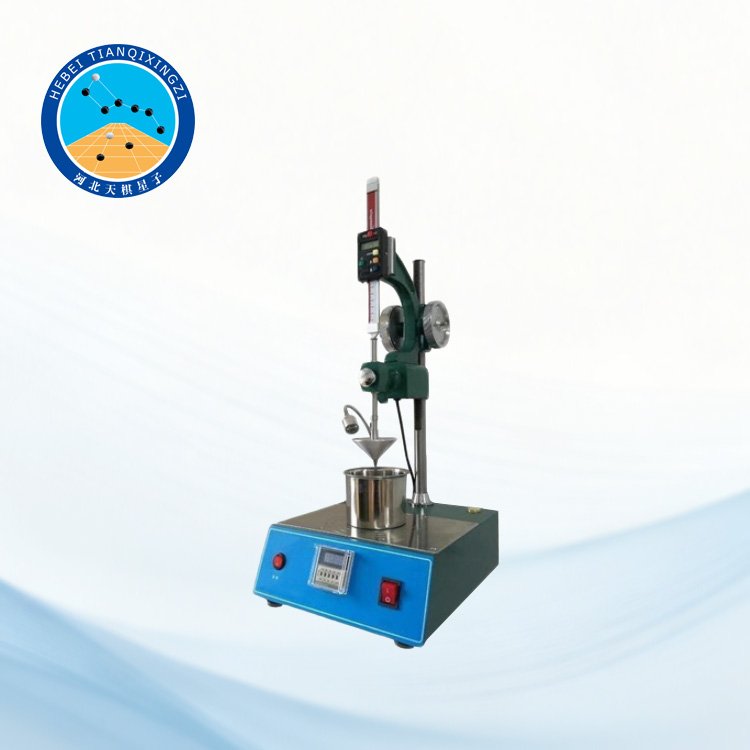

Asphalt cone penetration tester

Model:LQJHZ-1

I.Technical Parameters

1.Applicable Standards:GB/T269,ASTM D217,ISO 2137,etc.

2.Scope of Application:Determination of the Consistency of Greases and Petroleum Greases(Vaseline)

3.Measurement Range:0～620°cone penetration

4.Standard cone:102.5±0.05 g

5.Release time:0–60 s

6.Time control:Automatic

7.Operating power supply:AC220V 50Hz

8.Total power consumption:500W

II.Main Features

1.One-piece structure,easy to operate

2.Cone body meets standard requirements

3.Digital time display,no manual timing required

4.Optional circulating water bath
